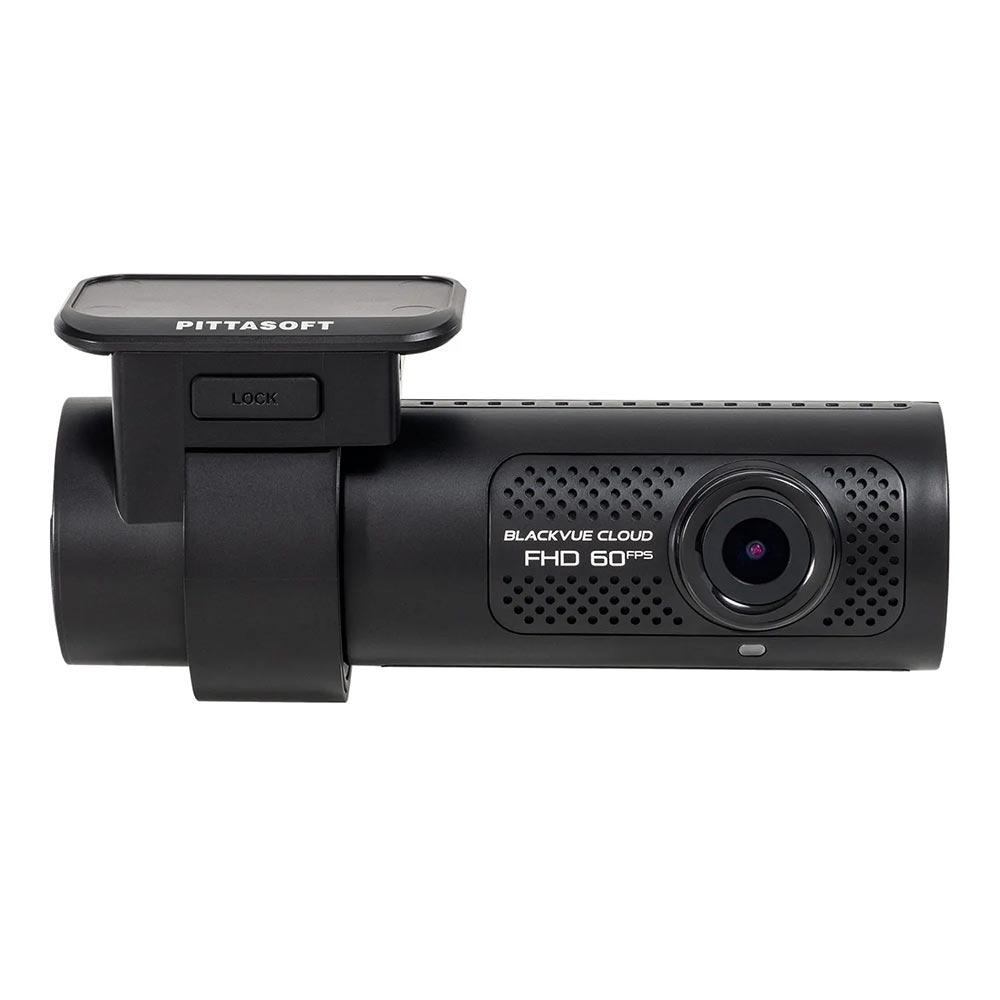

BlackVue DR770X-1CH

Smart, Reliable, and Connected Dashcam

OUR PRICE: £285.00 (inc VAT) plus installation

Full HD with Starvis
Cloud Connected
4G LTE Compatible
Intelligent parking mode
App Control
BlackVue CM100 LTE Connectivity Module

Optional: BlackVue CM100 LTE
The CM100LTE connectivity module easily connects to a BlackVue X Series dash cam to provide an always-on 4G LTE connection to BlackVue Cloud and its suite of unique LIVE features.
£169

datasheet

Key Features

  • Full HD 1080p @ 60fps Front
  • Sony STARVIS CMOS Sensor
  • Up to 256GB MicroSD Card Supported
  • Built-in Wi-Fi, G-Sensor, and GPS (GPS+GLONASS)
  • Compatible with BlackVue Cloud
  • Service (Real-time location, Push notification, etc.)
  • Mobile Hotspot Function
  • Loop Recording & Intelligent Parking Mode Impact Detection / Motion Detection* / Time Lapse Recording*
  • Built-in Low Voltage Cut-Off
  • High-Temperature Cut-Off Event
  • File Overwrite Protection Adaptive
  • Format-Free File Management
  • System BlackVue App (Android / iOS)
  • BlackVue Viewer (Windows / macOS)
  • BlackVue Web Viewer

(*) In Parking Mode Only
*STARVIS is a trademark of Sony Corporation

mobilesystems

General Features

BlackVue Cloud service is all about using your dashcam to its full potential, so that you and your car are always connected.
Remote Live View

Remote Live View

See through your dashcam’s lens in real time, anytime and
anywhere.

Remote Playback & Backup

Remote Playback & Backup

Remotely browse the videos in your dashcam and back them up to the Cloud or your phone.

Push Notifications

Push Notifications

Get notified instantly of Events (impact, disconnect).

Live Event Upload

Live Event Upload

Automatically save Event videos to the Cloud in real time, including a few seconds before trigger.

Driving Reports

Driving Reports

View at a glance of all sensor-triggered Events over a period of time.

Cloud Settings

Cloud Settings

Remotely change settings even while your dashcam is off.

Remote Firmware Update

Remote Firmware Update

An easy way to update the dashcam’s firmware over the Cloud.

Specifications

MODEL NAME : DR770X-64GB
COLOUR / SIZE / WEIGHT : Front: Black / Width 118.5mm x Height 36mm / 104g Rear: Black / Width 67.4mm x Height 25mm / 25g
MEMORY : microSD Card (32 GB/64 GB/128 GB/256 GB)
RECORDING MODES : Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).
* When using Hardwiring Power Cable, ACC+ will trigger parking mode.
When using other methods, G-sensor will trigger parking mode.
CAMERA : Front: STARVISTM CMOS Sensor (Approx. 2.1 M Pixel) Rear: STARVISTM CMOS Sensor (Approx. 2.1 M Pixel)
VIEWING ANGLE : Front: Diagonal 139°, Horizonal 116°, Vertical 61°
Rear: Diagonal 139°, Horizonal 116°, Vertical 61°
RESOLUTION / FRAME RATE : Front: Full HD (1920x1080) @ 60 fps Rear: Full HD (1920x1080) @ 30 fps
* Frame rate may vary during Wi-Fi streaming.
VIDEO CODEC : H.264 (AVC)
IMAGE QUALITY : Highest (Extreme), Highest, High, Normal
VIDEO COMPRESSION MODE : MP4
WI-FI : Built-in (802.11 b.g.n)
BLUETOOTH : Built-in (V2.1+EDR/4.2)
GPS : Built-in (Dual Band: GPS, GLONASS)
MICROPHONE : BUILT_IN
SPEAKER BUILT-IN

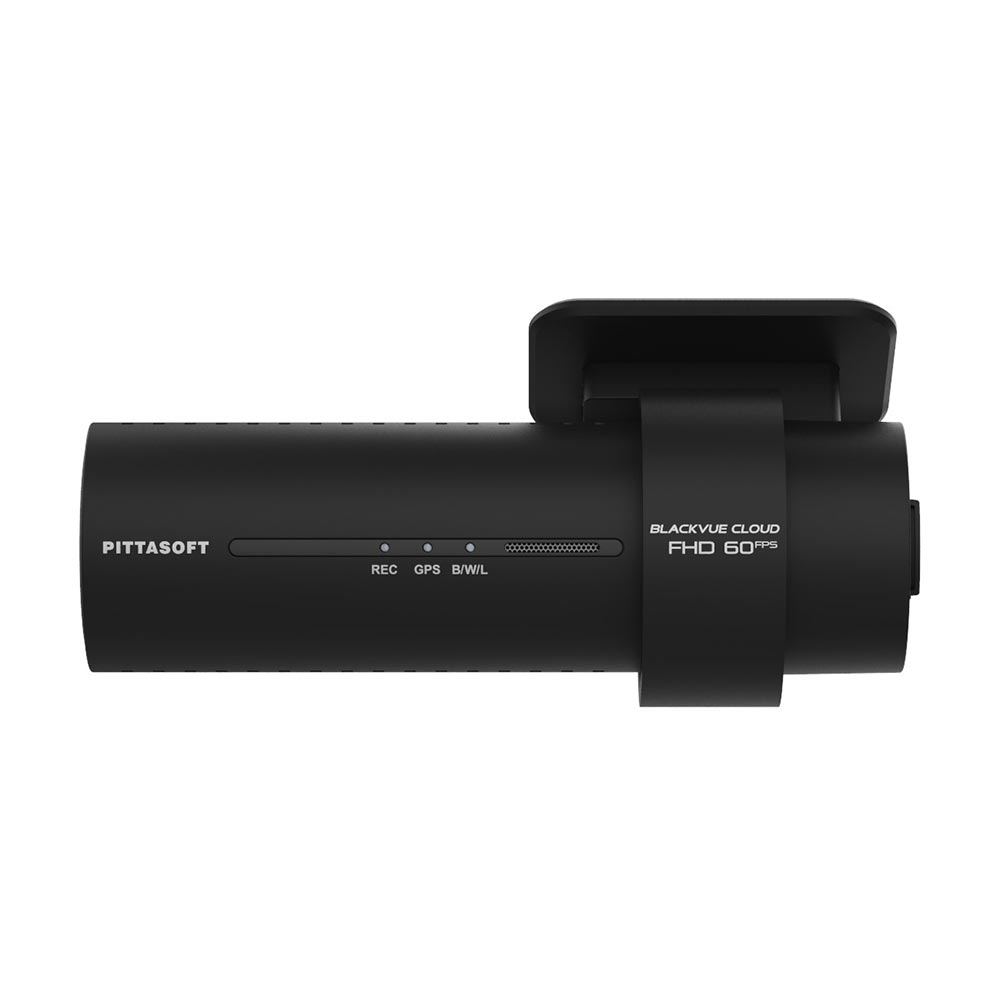

LED INDICATORS Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Rear: Rear Security LED
BUTTON : Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep
to format the microSD card. Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
SENSOR : 3-Axis Acceleration Sensor
BACKUP BATTERY : Built-in super capacitor
INPUT POWER : DC 12V-24V (3 pole DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
POWER CONSUMPTION : DR770X-1CH
Normal Mode (GPS On/1CH): Avg. 240mA / 12V Parking Mode (GPS Off/1CH):
Avg. 190mA / 12V
OPERATION TEMPERATURE : -20 °C − 80 °C (-4 °F − 176 °F)
STORAGE TEMPERATURE : -20 °C − 80 °C (-4 °F − 176 °F)
HIGH TEMPERATURE CUT-OFF : Approx. 80 °C (176 °F)
CERTIFICATIONS : Front: FCC, ISED, CE, UKCA, RCM, Telec, RoHS, WEEE Rear: FCC, ISED, CE, UCKA, RCM, RoHS, WEEE, KC
SOFTWARE : BlackVue Application
* Android 8.0 or higher, iOS 13.0 or higher BlackVue Viewer
* Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer
* Chrome 71 or higher, Safari 13.0 or higher
OTHER FEATURES : Adaptive Format Free File Management System
