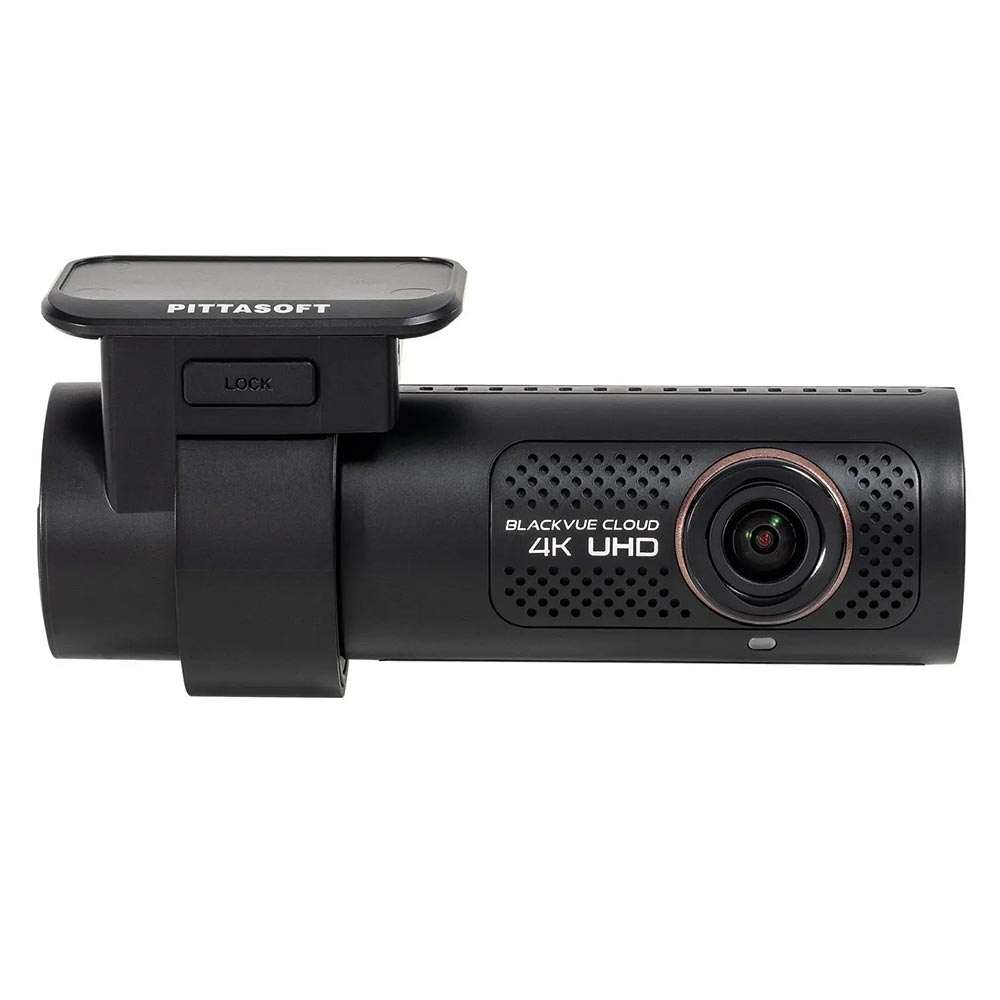

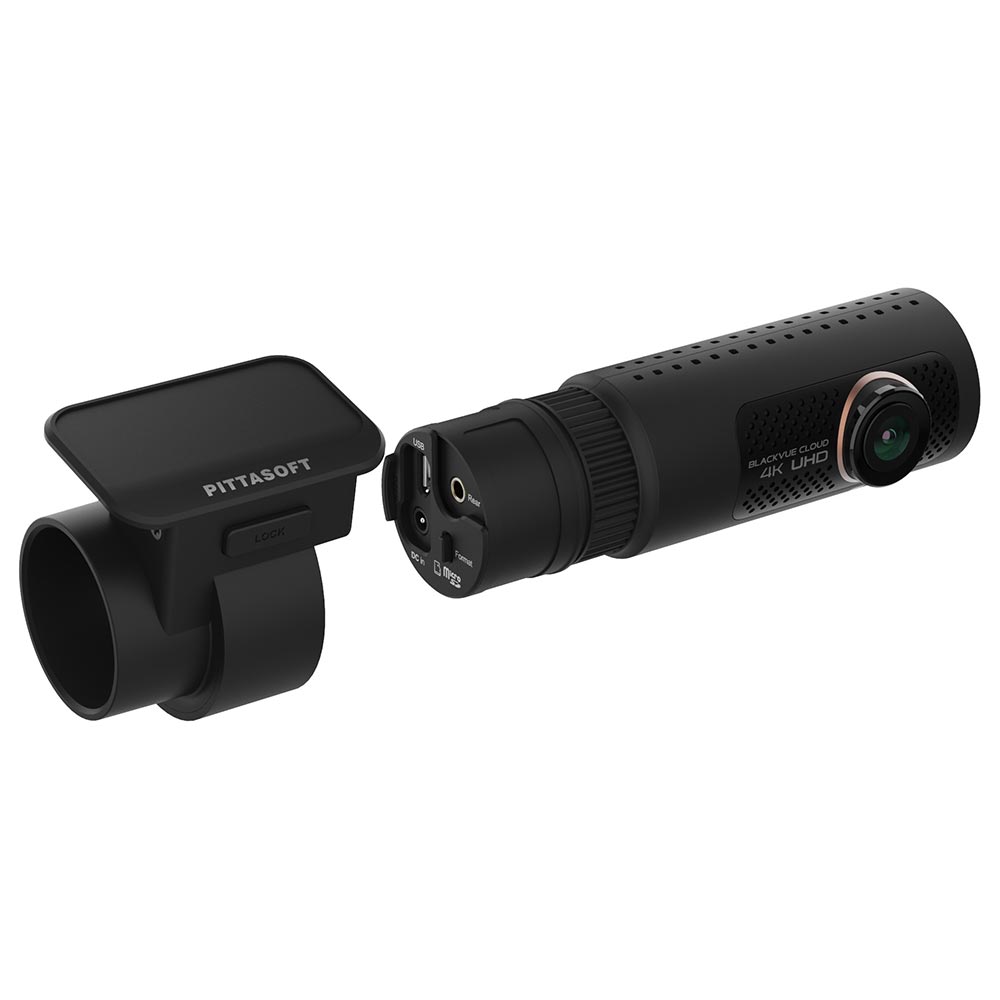

BlackVue DR970X
The Ultimate 4K Cloud Dashcam
![Image](/images/2023/05/24/blackvuee-logo-white.png)
![Image](/images/2023/05/24/icon-fullhd.png)
![Image](/images/2023/05/24/icon-cloud.png)
![Image](/images/2023/05/24/icon-4glte.png)
![Image](/images/2023/05/24/icon-park.png)
![Image](/images/2023/05/24/icon-5.png)
Key Features
- 4K UHD @ 30fps Front & Full HD @ 8.1MP Front
- Sony STARVIS CMOS Sensor
- Up to 256GB MicroSD Card Supported
- Built-in 2.4/5GHz Wi-Fi, G-Sensor, and GPS (GPS+GLONASS) G-Sensor, and GPS (GPS+GLONASS)
- Compatible with BlackVue LTE Module
- Compatible with BlackVue Cloud Service (Real-time location, Push Notification, etc.)
- Mobile Hotspot Function (requires optional BlackVue LTE module)
- Loop Recording & Intelligent Parking Mode
- Impact Detection / Motion Detection* / Time Lapse Recording*
- Built-in Low Voltage Cut-Off High-Temperature Cut-Off Event File
- Overwrite Protection Adaptive Format-Free File Management
- System BlackVue App (Android / iOS)
- BlackVue Viewer (Windows / macOS)
- BlackVue Web Viewer
(*) In Parking Mode Only
*STARVIS is a trademark of Sony Corporation
![mobilesystems](/images/movingcar.png)
General Features
![Remote Live View](/images/2023/05/24/icon-live-view.jpg)
Remote Live View
See through your dashcam’s lens in real time, anytime and
anywhere.
![Remote Playback & Backup](/images/2023/05/24/icon-playback.jpg)
Remote Playback & Backup
Remotely browse the videos in your dashcam and back them up to the Cloud or your phone.
![Push Notifications](/images/2023/05/24/icon-push.jpg)
Push Notifications
Get notified instantly of Events (impact, disconnect).
![Live Event Upload](/images/2023/05/24/icon-live.jpg)
Live Event Upload
Automatically save Event videos to the Cloud in real time, including a few seconds before trigger.
![Driving Reports](/images/2023/05/24/icon-driving.jpg)
Driving Reports
View at a glance of all sensor-triggered Events over a period of time.
![Cloud Settings](/images/2023/05/24/icon-cloud.jpg)
Cloud Settings
Remotely change settings even while your dashcam is off.
![Remote Firmware Update](/images/2023/05/24/icon-remote-firm.jpg)
Remote Firmware Update
An easy way to update the dashcam’s firmware over the Cloud.
Specifications
MODEL NAME : | DR970X-64GB |
COLOUR / SIZE / WEIGHT : | Front: Black / Width 118.5mm x Height 36mm / 106g |
MEMORY : | microSD Card (32 GB/64 GB/128 GB/256 GB) |
RECORDING MODES : | Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode. |
CAMERA : | Front: 8-Megapixel CMOS Sensor |
VIEWING ANGLE : | Front: Diagonal 155°, Horizonal 130°, Vertical 70° |
RESOLUTION / FRAME RATE : | Front: 4K (3840 x 2160) @ 30 fps * Frame rate may vary during Wi-Fi streaming. |
VIDEO CODEC : | H.264 (AVC) |
IMAGE QUALITY : | Highest (Extreme), Highest, High, Normal |
VIDEO COMPRESSION MODE : | MP4 |
WI-FI : | Built-in (802.11 a.b.g.n.ac) |
BLUETOOTH : | Built-in (V2.1+EDR/4.2) |
GPS : | (dual band: GPS, GLONASS) |
MICROPHONE : | BUILT_IN |
SPEAKER | BUILT-IN |

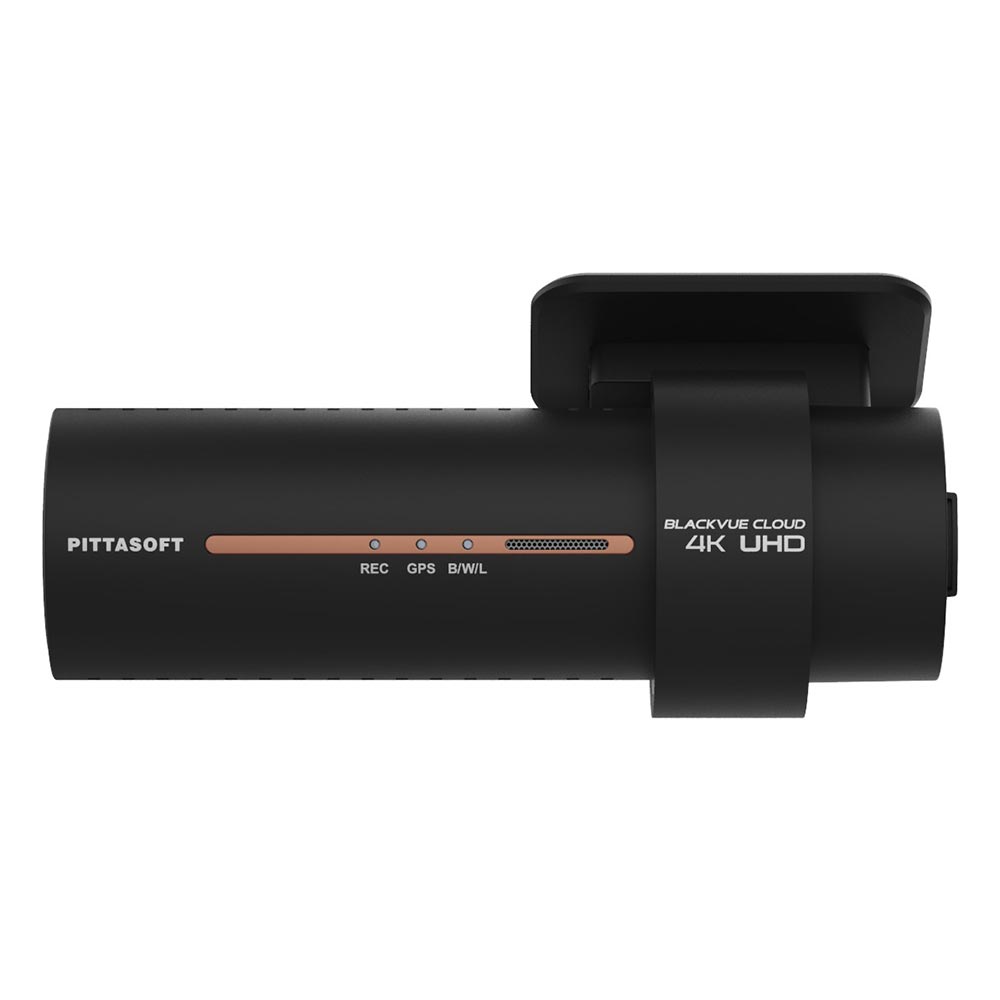

LED INDICATORS | Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Rear: Rear Security LED |
BUTTON : | Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings. |
SENSOR : | 3-Axis Acceleration Sensor |
BACKUP BATTERY : | Built-in super capacitor |

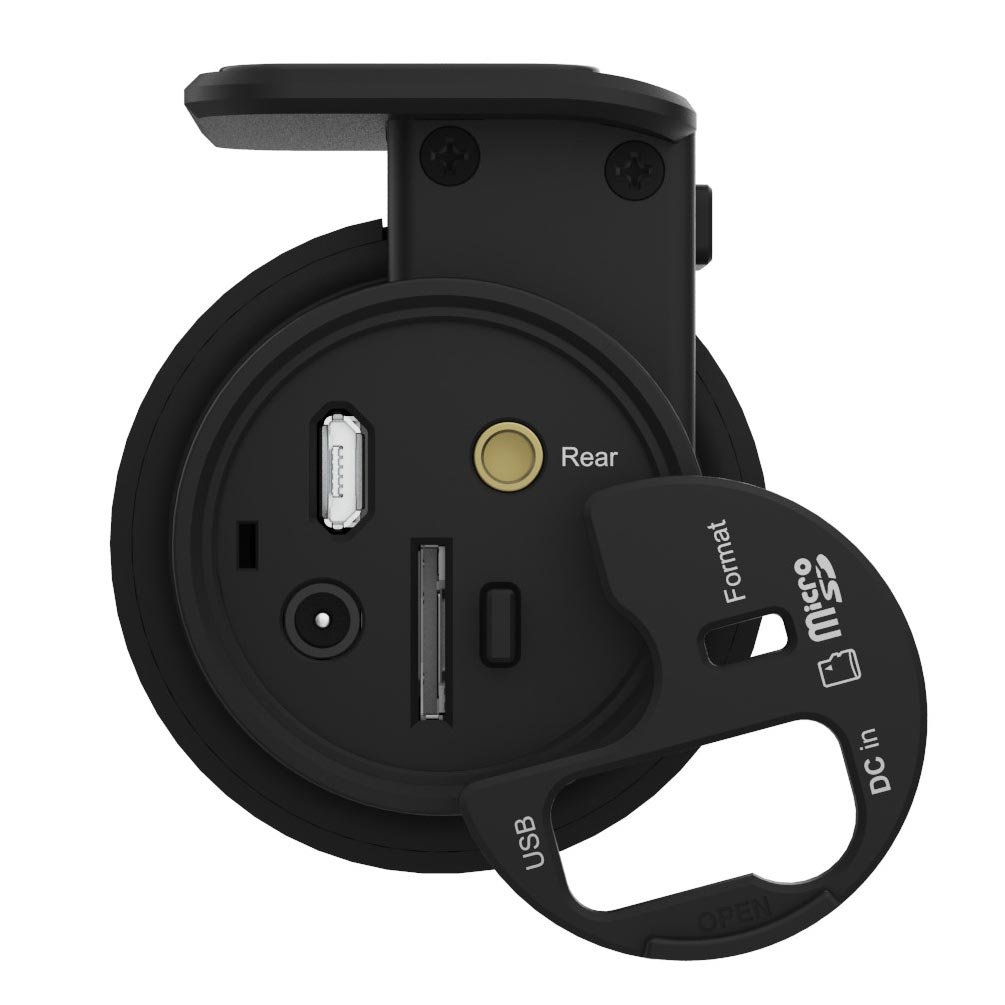

INPUT POWER : | DC 12V-24V (3 pole DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
POWER CONSUMPTION : | DR970X-1CH Normal Mode (GPS On/1CH): Avg. 300mA /12V Parking Mode (GPS Off/1CH): Avg. 230mA /12V |
OPERATION TEMPERATURE : | -20 °C - 70 °C (-4 °F - 158°F) |
STORAGE TEMPERATURE : | -20 °C - 80 °C (-4 °F - 176°F) |
HIGH TEMPERATURE CUT-OFF : | Approx. 70 °C (167 °F) |
CERTIFICATIONS : | Front: FCC, ISED, CE, UKCA, RCM, Telec, RoHS, WEEE Rear: FCC, ISED, CE, UCKA, RCM, RoHS, WEEE, KC |
SOFTWARE : | BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher |
OTHER FEATURES : | Adaptive Format Free File Management System |
