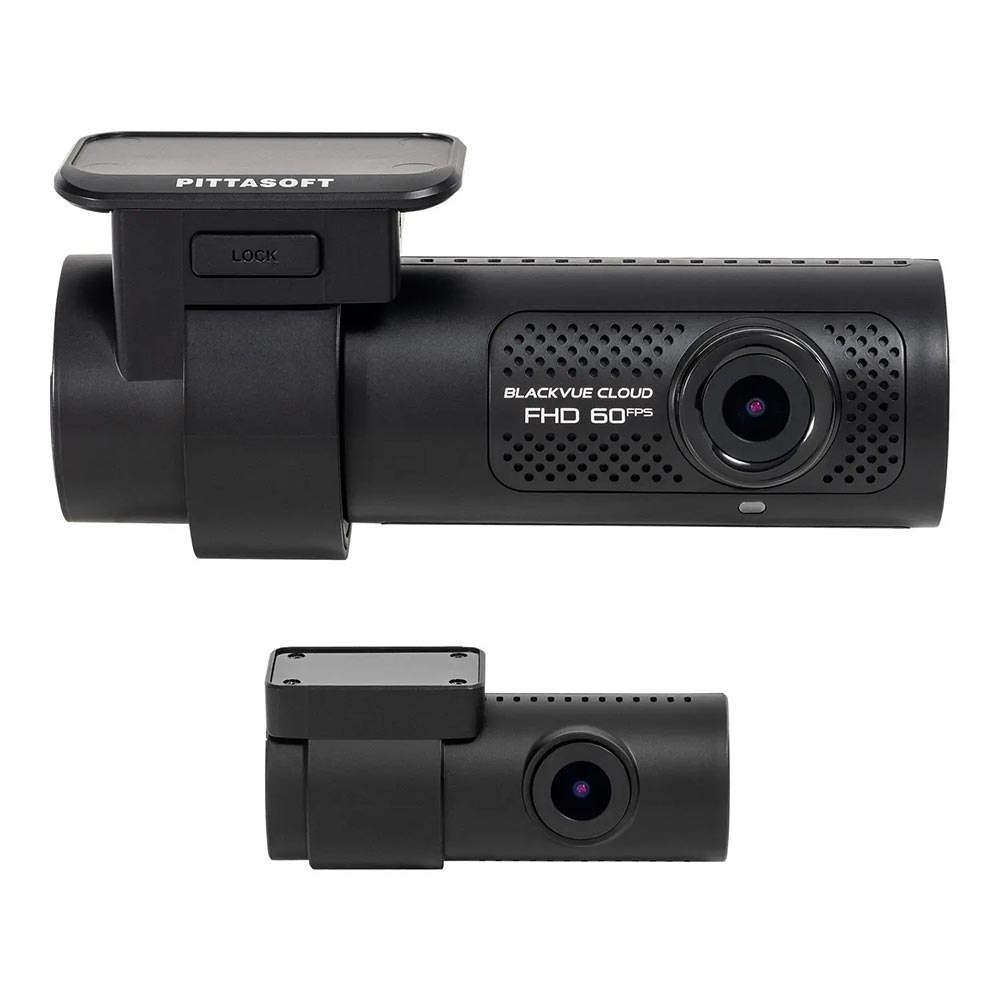

BlackVue DR770X-2CH
Smart, Reliable, and Connected Dashcam
OUR PRICE: £399.00 (inc VAT) plus installation
Full HD with Starvis
Cloud Connected
4G LTE Compatible
Intelligent parking mode
App Control
Optional: BlackVue CM100 LTE
The CM100LTE connectivity module easily connects to a BlackVue X Series dash cam to provide an always-on 4G LTE connection to BlackVue Cloud and its suite of unique LIVE features.
£169
Key Features
- Full HD 1080p @ 60fps Front & Full HD @ 30fps Rear
- Sony STARVIS CMOS Sensor (Front and Rear)
- Up to 256GB MicroSD Card Supported
- Built-in Wi-Fi, G-Sensor, and GPS (GPS+GLONASS)
- Compatible with BlackVue Cloud
- Service (Real-time location, Push otification, etc.)
- Mobile Hotspot Function
- Loop Recording & Intelligent Parking Mode Impact Detection / Motion Detection* / Time Lapse Recording*
- Built-in Low Voltage Cut-Off
- High-Temperature Cut-Off Event
- File Overwrite Protection Adaptive
- Format-Free File Management
- System BlackVue App (Android / iOS)
- BlackVue Viewer (Windows / macOS)
- BlackVue Web Viewer
(*) In Parking Mode Only
*STARVIS is a trademark of Sony Corporation
General Features
BlackVue Cloud service is all about using your dashcam to its full potential, so that you and your car are always connected.
Remote Live View
See through your dashcam’s lens in real time, anytime and
anywhere.
Remote Playback & Backup
Remotely browse the videos in your dashcam and back them up to the Cloud or your phone.
Push Notifications
Get notified instantly of Events (impact, disconnect).
Live Event Upload
Automatically save Event videos to the Cloud in real time, including a few seconds before trigger.
Driving Reports
View at a glance of all sensor-triggered Events over a period of time.
Cloud Settings
Remotely change settings even while your dashcam is off.
Remote Firmware Update
An easy way to update the dashcam’s firmware over the Cloud.
Specifications
| MODEL NAME : | DR770X-64GB |
| COLOUR / SIZE / WEIGHT : | Front: Black / Width 118.5mm x Height 36mm / 104g Rear: Black / Width 67.4mm x Height 25mm / 25g |
| MEMORY : | microSD Card (32 GB/64 GB/128 GB/256 GB) |
| RECORDING MODES : | Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode. |
| CAMERA : | Front: STARVISTM CMOS Sensor (Approx. 2.1 M Pixel) Rear: STARVISTM CMOS Sensor (Approx. 2.1 M Pixel) |
| VIEWING ANGLE : | Front: Diagonal 139°, Horizonal 116°, Vertical 61° Rear: Diagonal 139°, Horizonal 116°, Vertical 61° |
| RESOLUTION / FRAME RATE : | Front: Full HD (1920x1080) @ 60 fps Rear: Full HD (1920x1080) @ 30 fps * Frame rate may vary during Wi-Fi streaming. |
| VIDEO CODEC : | H.264 (AVC) |
| IMAGE QUALITY : | Highest (Extreme), Highest, High, Normal |
| VIDEO COMPRESSION MODE : | MP4 |
| WI-FI : | Built-in (802.11 b.g.n) |
| BLUETOOTH : | Built-in (V2.1+EDR/4.2) |
| GPS : | Built-in (Dual Band: GPS, GLONASS) |
| MICROPHONE : | BUILT_IN |
| SPEAKER | BUILT-IN |
| LED INDICATORS | Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Rear: Rear Security LED |
| BUTTON : | Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings. |
| SENSOR : | 3-Axis Acceleration Sensor |
| BACKUP BATTERY : | Built-in super capacitor |
| INPUT POWER : | DC 12V-24V (3 pole DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| POWER CONSUMPTION : | DR770X-2CH Normal Mode (GPS On/2CH): Avg. 380mA / 12V Parking Mode (GPS Off/2CH): Avg. 300mA / 12V *Actual power consumption may vary depending on use conditions and environment. |
| OPERATION TEMPERATURE : | -20 °C − 80 °C (-4 °F − 176 °F) |
| STORAGE TEMPERATURE : | -20 °C − 80 °C (-4 °F − 176 °F) |
| HIGH TEMPERATURE CUT-OFF : | Approx. 80 °C (176 °F) |
| CERTIFICATIONS : | Front: FCC, ISED, CE, UKCA, RCM, Telec, RoHS, WEEE Rear: FCC, ISED, CE, UCKA, RCM, RoHS, WEEE, KC |
| SOFTWARE : | BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher |
| OTHER FEATURES : | Adaptive Format Free File Management System |
